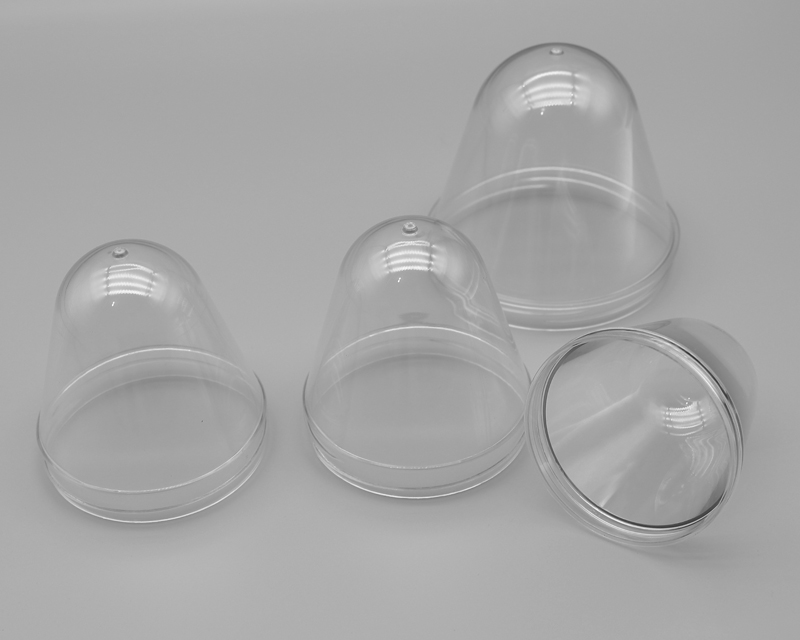

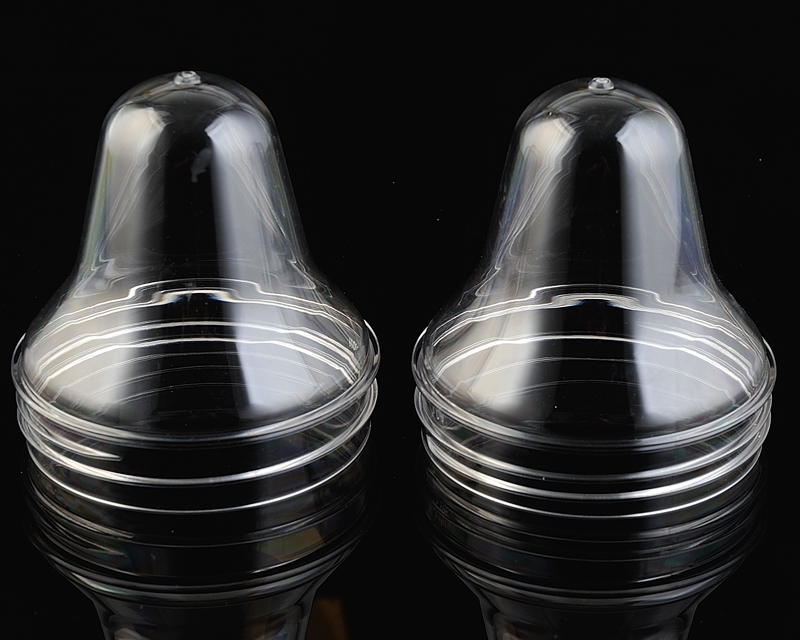

High precision 8cavity 12cavity 16cavity 24cavity wide mouth Jar preform mold
High precision 8cavity 12cavity 16cavity 24cavity wide mouth Jar preform mold
2024/3/22 ， visits
1.We are one of the most reliable companies in this domain offering PET Preform Mould with advanced mould design technology.
Multicavity: 1-8 cavity, 12 cavity, 16 cavity, 24 cavity, 32 cavity, 48 cavity, 56 cavity, 72 cavity and 96 cavity.
Neck finish:PCO, 1810,1881,30/25,29/25,38 ,ALASK, ROPP; Jar neck and others.
COOLING SYSTEM
spiral water cooling way on cavity enhances mold cooling.
cooling system on neck and move neck plates brings an enhance cooling.
precise distributary plate distributes cooling water into cavity evenly,quicken preform cooling.
HOT RUNNER
hot runner balance design ensures evenly force,uniform heating and identical preform.
less energy cost and pressure lost.
independent cavity control system ensures nozzle temperature fluctuates within 1 .Adopt imported heating devices,Germany Hotset or Italy Rotfil.
product Description
PET Preform Mould, Preform Mold Maker In China
For over 10 years, APEX has been the go-to source for reliable, affordable PET preform moulds. Our experienced team uses modern technology combined with the highest quality materials to create molds that are durable and cost-effective.We have earned the trust of both local and international customers, thanks to our commitment to customer satisfaction. Our staff is continuously refining and innovating the production process to ensure the best quality results.
Our confidence in the quality of our PET preform moulds is backed by more than a decade of experience, and we guarantee that our products will meet the needs of our customers. If you’re searching for quality preform molds at competitive prices, APEX is the perfect partner.
Rich experience in preform mold manufacturing
APEX plastic mould company has accumulated significant experience in the plastic injection moulding industry over the last ten years in China. As a result, we have developed substantial knowledge and expertise that allow our company to offer the customers the highest level of skills, knowledge, and dedication in the preform mould market.
No doubt about it, APEX can manufacture a complete set of PET preform moulds on time and accurately, at the best possible PET preform moulds prices.
GET A FREE QUOTE-40% LOWER ,15 DAYS LESS
Our company has gained extensive skill and expertise in preform mould, allowing clients to trust that they will receive top-class service, efficiency, and commitment.With the capacity to build a full set of PET preform moulds promptly, accurately and cost-effectively no matter how elaborate, APEX is ready to meet any customer needs.
Beyond this, we are also able to design and make each PET preform to customers’ particular specifications, as well as provide printing options on each one.
Strong R & D System
A good preform project development needs consider molding and blowing system together seriously. By professional analysis software and rich making experience, we could evaluate preform shape and bench rate well to avoid future mistakes. Think in future, and we honored a more thinking will be make finished preforms more competitive in market.
Standard Mold Component And Brand Spare Parts
Precision tooling machines ensures each inserts and mold component be in standard, it will be easy for maintenance in future. And with brand spare parts, preform users result will be better for practice.
A. Capacity of Research and Development
APEX has a powerful team for research and development, which is capable of manufacturing the pet perform molds with 1 cavity to 96 cavities including the pet preform injection molding system. At the same time we can manufacture pet perform molds especially according to customers' injection molding machines. We also design cold parts, hot runners and other main exchangeable components to fix on the imported perform molds.
B. Mould Features:
1. Features of the perform mold. No cutting of valve gate is employed to reduce the labor cost.
2. Advanced hot runner system assures lower level of AA value.
3. Reasonable- designed cold water channels increase cooling effect and shorten the cycle time.
C. Material
1. The main components of perform molds are made of S136 material (Sweden ASSAB).
2. The mold base is made of imported P20. plate method avoids corrosion efficaciously and assures long life service of the perform molds.
3. German Vacuum stove is imported for heat treatment of the components, which assures the hardness of components HRC45-HRC48.
D. Advanced Processing Equipment
Many machine tools are imported from America and Japan, such as Machine center, CNC lathers, EDM and so on. All of these increases processing precision, good interchangeability and low eccentricity ≤0.10mm (perform length≤100).
E. Electric Heating Components
1. German Hotset heating components.
2. German intelligent temperature controller (PID continuous power controlling).
3. Offering temperature controller and voltage controller according to customers' requirement
F. Perfect Inspection Method.
Inspection tools include projector, hardness tester, stress tester, eccentric tester, electric balance and other inspection tools. The screw neck is made and inspected strictly by the standard of Coca cola and the screw neck has been up to the standard of Coca cola.
G. After-Sales Service
Technologists professional in after-sales line and excellent credit assures stable operation of the machines.

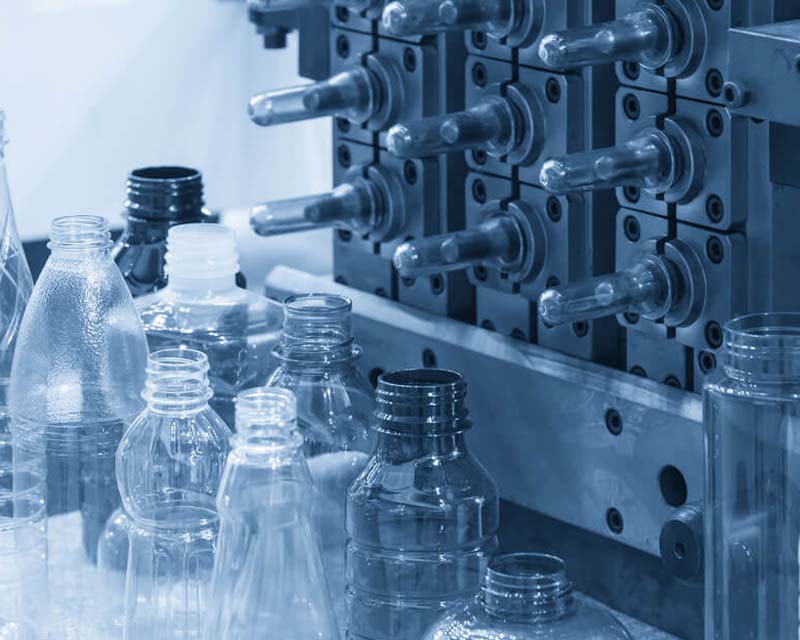

APEX provides not only a mold, but a fine plastic PET preform injection molding solution. It’s like a complete preform molding line contained PET preform molds (Preform type ROPP, ALASKA, PCO1810, PCO1881, BPF, 30/25, 29/25, 26/22, 38mm, 48mm, 50-150mm etc), special PET injection molding machine, other accessories such like dehumidify and dryer, auto loader, water tower, chiller and so on. Besides, we will also provide detail factory plan, gas & water& electric plan and engineer service on customer’s factory for equipment installing, parameter adjusting, and operating & maintenance operation.
PET preform Mould Feature
- 1. Mould plates are 4G13 or P20 stainless steel with pre-hardening process. Core, cavity and neck screw are made of S136 high Strength, anti-corrosive stainless steel. Mould plate is completed by one-time processing to ensure the concentricity of moulding hole and guide bush, guaranteeing the compact structure of mould.
- 2. Spiral cooling design for each single core and cavity, it helps to lessen the cycle time, improving production efficiency and saving costs. Opening/closing pulling plate adopts bearing slide type to drop the preform with realiable structure. And it is a highly integrated process of slider, pushing plate and ejection. All sliding parts surface inlaid self-lubricating copper alloys to ensure low friction effecient and strong wear-resistant.
- 3. Self- lock individually for each cavity to guarantee high precision and less defect of the final preform production as well as convenient disassembly.
- 4. Off-center adjustment system to ensure preform thickness difference < 0.10mm. Adopting double cone positioning principle guarantees high manufacturing precision to ensure the product without appearing flash, different size, irregular and other defects.
- 5. Experienced designers design preform mould with UG, Pro-E according to the clients sample; Preform thickness and height is reasonably and perfectly designed to ensure the final bottles weight light but feel hard.
- 6. Hot runner valve gate system is perfect used; No need to cut preform tail and it would save labor costs.
- 7. Hot runner system uses China advanced brand or imported hot runner system brand such as Yudo/Mastip/Hasco etc. Each cavity has independent temperature control and heater system. It will prevent the white defects on the preform and improve the qualtiy of plastic products.
- 8. Customer service: one year free warranty, life-long technical support service.
