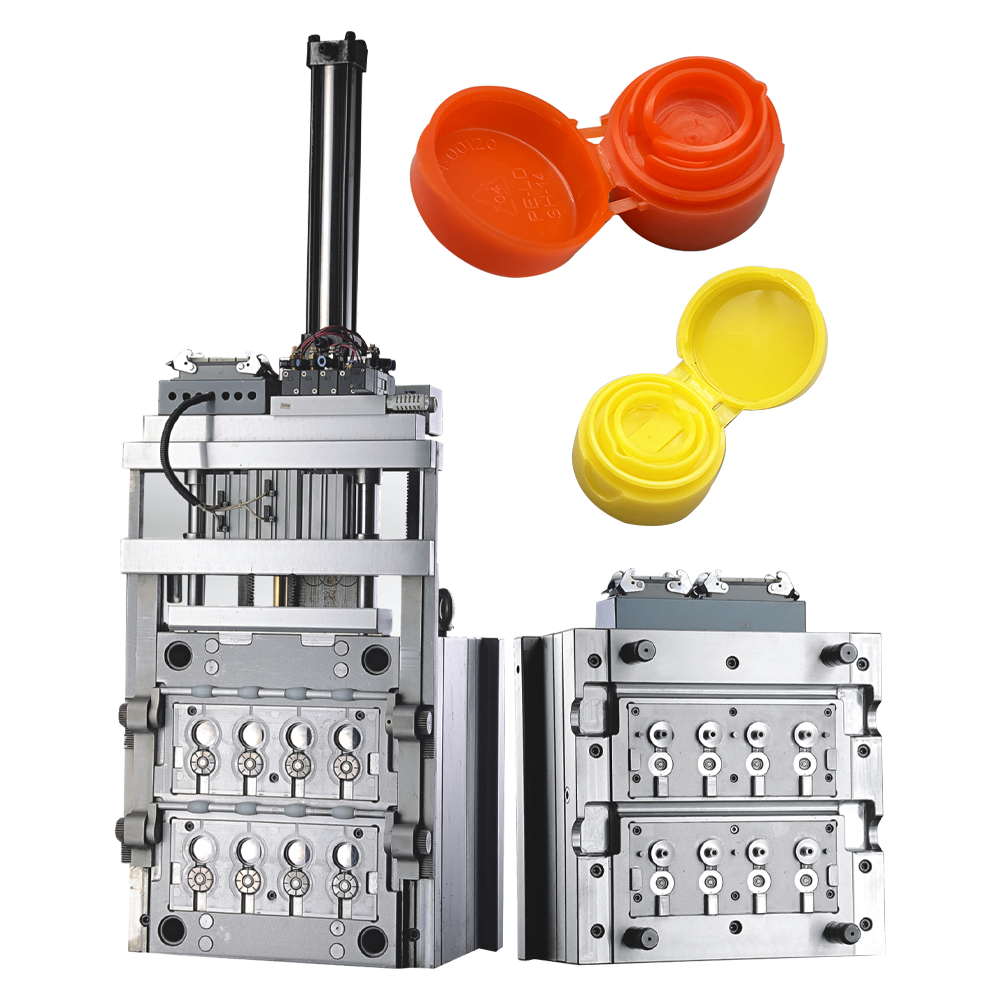

Professional High Precision Free Plastic Mould Design Service 16 Cavity Cold Runner Flip Top Cap Mould For Different Bottles

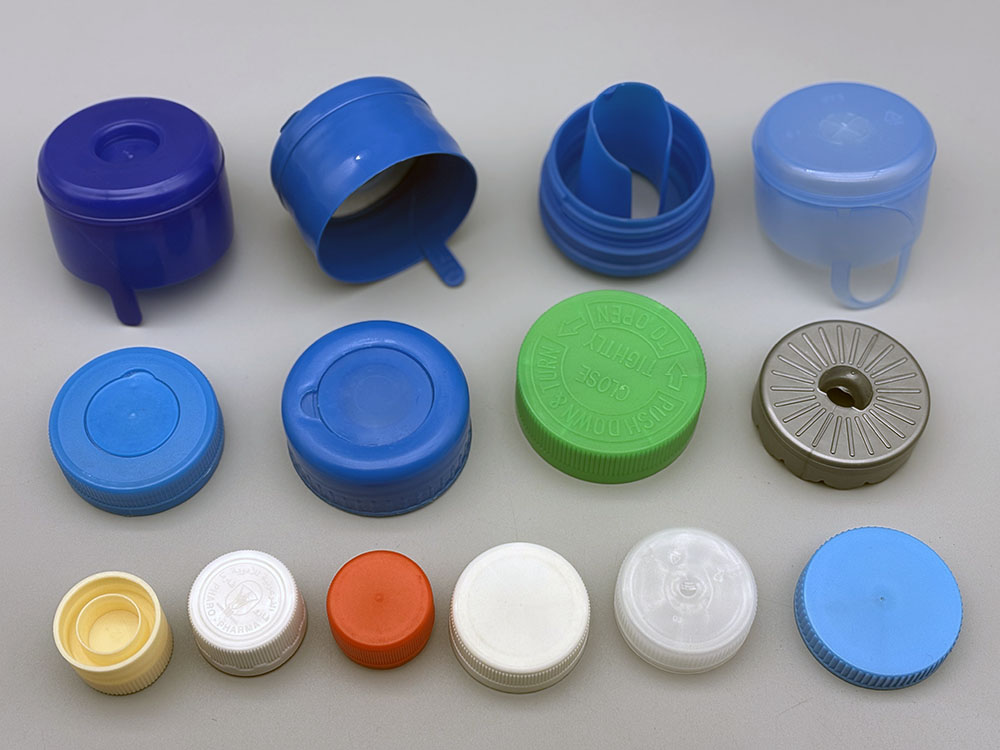

1. PP PE PET PC cap mold

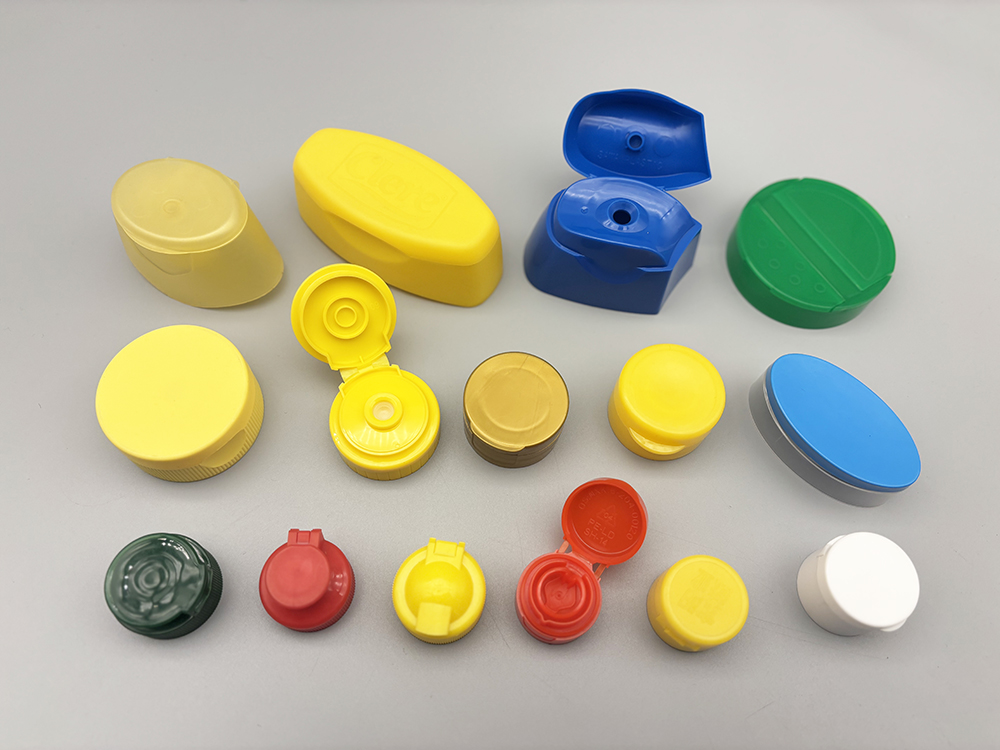

2. Flip-top cap mold
3. Mould life 2 million shots
4. Cold runner or hot runner system
※ Adopt imported steel, like P20, 2316, S136 etc
※ Each cavity and core have independent cooling system, reduce recycle time. ※ Rational mold design to increase mold using time and get higher productive efficiency.
※ Precision processing equipment to ensure high production quality.
※ Vacuum hardening increase mold steel hardness to HRC62.
※ Electroplating processing makes whole mold shinny and rust-proof.
Product Name | Plastic Cap Mold |
Cap Mold Cavity |
4, 6, 8, 12, 16, 24, 32, 48 cavity etc |
Cap Material |
PP, PC, PE, ABS, PVC etc |
Mould Material |
P20, S136, H13, 718, 2316, 3Cr13, 4Cr13, 2344, S50C etc, optional |
Runner |
Cold runner or Hot runner system |
Gate System |
Point gate, side gate, top gate, based on products, optional |
Steel Hardness |
HRC30-35 for base plate, HRC45-48 for core and cavity, HR58-62 for special parts |
Business Type
|
Manufacturer |
Main Product
|
Product design,Plastic injection mold,Medical part mold,IML/IMD,2K injection mold,Silicone rubber mold,Die casting,Prototype,CNC Milling... |
Plastic Material
|
HIPS ABS, PC, PP, PS, POM, PMMA,PE,AS,PPSN,PBT,PA66,PC/ABS.etc |
Mould Precision
|
+/-0.001mm |
Mould Life
|
50-500K shots |
Mould Cavity
|
Single cavity, multi-cavity. |
Runner System
|
Hot runner and cold runner. |
Equipment
|
Precision mold processing equipment and testing instruments from Germany, with constant temperature management, and ERP digital management system to visually control the production progress |
Color
|
White, black, red, blue..et. according to customer's requirement. |
Surface Treatment
|
Polishing,Painting,Chroming,Anodizing, Brushing, Silk Screening,Water Transfering, Laser Cutting,Leather Covering,Texture,Sanblasting,Gilding, UV Painting… |
Injection machies equipments
|
According to product precision to choice the different model 120T,200T,450T,800T injection machine. |
Inspection
|
100% inspection by QC, QA before shipping. |
Applications
|
All kinds of cars spare part , machinery, home appliance, electronic products, medical devices, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts,and more. |
File Format
|
Solidworks,Pro/Engineer,Auto CAD,PDF,JPG |
Quality Control System
|
ISO9001 quality management system certification;
ISO14001 environment management system certification;
ISO13485 medical devices quality management system certification |
Package
|
1. Inner plastic bags with foam, outer for cartoon or wooden cases with good protect; 2.According to customer's requirement |
Payment term
|
50% down payment, balance payment before shipment. |
